Cat 6 SF/UTP
( Cat 6 SF / UTP )
Layers Construction
- Cu / PE / TDW / Al Foil / PVC
- Cu / PE / TDW / Al Foil / LSZH
Network cable with PE insulation and PVC or LSZH sheath

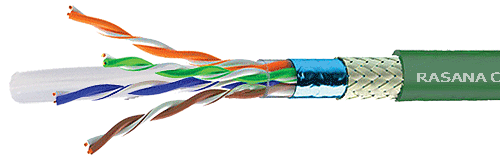

Cable Structure
Conductor type and class:
Annealed copper class 1 (solid)
Insulation material:
HDPE Compound
Pairs Identification:
Single cores are twisted together to form a pair.
Four pairs are twisted to form the cable core.
Four pair’s colors are White-Blue, Blue, White-Orange, Orange, White-Green, Green, White-Brown and Brown.
Central separator:
The cores are twisted into pairs and placed around an X-shaped central HDPE separator.
Shield 1:
A layer of polyester tape wrapped helically or longitudinally combined with a layer of aluminum foil wrapped helically or longitudinally as a shield in contact with a tinned copper drain wire.
Shield 2:
Braided tinned copper in contact with aluminum foil layer and a drain wire.
Outer Sheath material:
PVC or Low Smoke/Halogen Free (LSZH) compound
Outer Sheath color:
Jade green
Cable Length:
500 m (1640 feet)
Technical Data
Temperature Range:
-30 °C to +70 °C
Reference Standard:
ISO / IEC 11801 & IEC 61156 – 5
TIA / EAI – 568 – C.2
TIA / EAI – 568 – D.2
IEC 60754 – 1,2
IEC 60332 – 1
Cable Code:
Cat 6 SF / UTP
Application
This types of cables are used for transmission data to Gigabit networks and other network protocols. The aluminum foil serves a shield, therefore, it would eliminate any effects of environmental noises in the system and would have the maximum efficiency on noise cancellation
Properties
| Approx. Weight ( kg / km ) |
Nominal Outer Diameter ( mm ) |
Nominal Sheath Thickness ( mm ) |
Nominal Central Separator Thickness ( mm ) |
Conductor Diameter ( mm ) |
Cable Type |
| 69 | 8 | 0.6 | 4.6 ~ 4.7 | 0.56 | Cat 6 SF / UTP |
Dedicated Tests
| 250 | 200 | 100 | 62.5 | 16 | 10 | Frequency ( MHz ) |
| 32.8 | 29 | 19.8 | 15.4 | 7.6 | 6 | Attenuation ( db / 100 m ) |
| 38.3 | 39.8 | 44.3 | 47.4 | 56.2 | 59.3 | NEXT ( db ) |
| 5.5 | 10.8 | 24.5 | 32 | 48.6 | 53.3 | ACR – N ( db ) |
| 16.8 | 18.8 | 24.8 | 28.9 | 40.7 | 44.8 | ACR – F ( db ) |
| 17.3 | 18 | 20.1 | 21.5 | 25 | 25 | RL ( db ) |
| 100 ± 15 | Characteristic Impedanc ( Ω ) | |||||
| 9.38 | Max / Conductor Resistance ( Ω / 100 m ) |
| 56 | Max / Mutual Capacitance nf / km ( @ 1 KHz) |
| 69 | Nominal Velocity of propagation ( % ) |
| 498 | Max / Propagation Delay Skew ( ns ) |
| 45 | Max / Delay Skew ( ns) |
