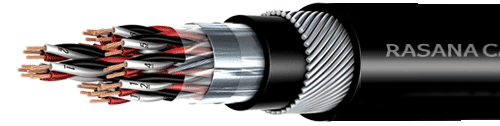

Instrumentation Cables
Simple and armored with screen (Individual and overall / Overal)
Without protection, with protection or with protection and armor
Layers Construction
- Cu / PVC / OSCR / PVC
- Cu / PVC / ISCR / OSCR / PVC
- Cu / PVC / ISCR / OSCR / Bd / SWB / PVC
- Cu / PVC / ISCR / OSCR / Bd / SWA / PVC
- Cu / MGT / XLPE / OSCR / LSZH
- Cu / MGT / XLPE / ISCR / OSCR / LSZH
- Cu / MGT / XLPE / ISCR / OSCR / Bd / SWB / LSZH
- Cu / MGT / XLPE / ISCR / OSCR / Bd / SWA / LSZH
Instrumentation Cable, with or without Individual and overall screen for analog and digital data transmission.
Cable Structure
Conductor type and class:
Annealed copper conductor class 1 ( solid ), class 2 ( stranded ) or class 5 ( flexible )
according to IEC 60228 ( ISIRI 3084 ) or BS 6360
Tape on the conductor:
Mica tape (if any)
PVC core insulation:
Compound type of PVC or PE or XLPE
Core insulation colors:
For multi core cables, color coding or number coding and for multi pair cables, color coding
(according to the customer’s request)
Twisting the string of wires:
The strands are woven together in pairs, threes or fours.
Pair screen:
If ordered, a Layer of polyester film will be applied helically over the pairs. Then a drain wire of tinned annealed copper, will be used along side and they all will be wrapped helically by aluminium foil
General shield:
For cables with collective screen a layer of aluminium foil will be wrapped helically over the polyester tape using a drain wire of tinned annealed copper, under the foil
Middle sheath:
For armored cables, an extruded intermediate sheath of the final sheath material (if any)
Armor:
Wire, braid or tape galvanized steel armor
PVC outer sheath:
Compound type of PVC or LSZH Compound
Sheath color:
According to customer request
Technical Data
Temperature range:
Fixed installations PVC & PE: – 30°C to + 70°C
Fixed installations XLPE: – 40°C to + 90°C
Flexing: – 5°C to + 50°C
Nominal Voltage Uo / U:
90 V
300 V
500 V
Reference Standard:
BS EN 50288 – 7
INSO 1930 – 7
Wire code:
PiMF
TiMF
QiMF
RE – 2Y ( St ) Y
RE – 2Y ( St ) YRY
RE – 2X ( St )H
Application
These types of cables are suitable for transmitting data and can be used in the control rooms of industrial devices and electrical substations. Electrostatic shielding can protect circuits from electrical interference. Using the structure of paired cables reduces hearing.
These cables are not suitable for direct connection with sources such as city electricity that have low impedance.
Properties
| Max. Conductors Resistance at 20˚C ( Ω / km ) |
Approx. Weight ( kg / km ) |
Average Outer Diameter ( mm ) |
Nominal Sheath Thickness ( mm ) |
Nominal Conductor Thickness ( mm ) |
Nominal Middle Insulation Thickness ( mm ) |
Nominal Insulation Thickness ( mm ) |
Class of Conductors |
Nominal Cross Section of Conductors ( mm2 ) |
| Precision instrument cables / double precision instrument cable with double and overall protection in the form of polyester tape and aluminum foil Cu / PVC / ISCR / OSCR / PVC |
||||||||
| 36 | 118 | 10.7 | 1.3 | – | – | 0.52 | 2 | 2×2×0.5 |
| 36 | 183 | 12.5 | 1.4 | – | – | 0.52 | 2 | 4×2×0.5 |
| 36 | 315 | 16.7 | 1.5 | – | – | 0.52 | 2 | 8×2×0.5 |
| 36 | 442 | 19.6 | 1.6 | – | – | 0.52 | 2 | 12×2×0.5 |
| 36 | 814 | 27 | 1.8 | – | – | 0.52 | 2 | 24×2×0.5 |
| Precision instrument cables / double precision instrument cable with double and overall protection in the form of polyester tape and aluminum foil and with armor texture Cu / PVC / ISCR / OSCR / PVC / SWB / PVC |
||||||||
| 36 | 269 | 14.1 | 1.4 | 0.3 | 1 | 0.52 | 2 | 2×2×0.5 |
| 36 | 366 | 16.1 | 1.5 | 0.3 | 1.1 | 0.52 | 2 | 4×2×0.5 |
| 36 | 562 | 20.5 | 1.6 | 0.3 | 1.2 | 0.52 | 2 | 8×2×0.5 |
| 36 | 755 | 23.8 | 1.7 | 0.3 | 1.4 | 0.52 | 2 | 12×2×0.5 |
| 36 | 1328 | 32 | 1.9 | 0.4 | 1.6 | 0.52 | 2 | 24×2×0.5 |
| precision instrument cables / double precision instrument cable with mica strip and with double and overall protection in the form of polyester strip and aluminum foil Cu / MGT / XLPE / ISCR / OSCR / LSZH |
||||||||
| 36 | 152 | 12.9 | 1.4 | – | – | 0.52 | 2 | 2×2×0.5 |
| 36 | 223 | 14.9 | 1.4 | – | – | 0.52 | 2 | 4×2×0.5 |
| 36 | 393 | 20.2 | 1.6 | – | – | 0.52 | 2 | 8×2×0.5 |
| 36 | 546 | 23.8 | 1.7 | – | – | 0.52 | 2 | 12×2×0.5 |
| 36 | 989 | 33 | 1.9 | – | – | 0.52 | 2 | 24×2×0.5 |
| precision instrument cables / double precision instrument cable with mica tape and with double and overall protection in the form of polyester tape and aluminum foil and with armor texture Cu / MGT / XLPE / ISCR / OSCR / LSZH / SWB / LSZH |
||||||||
| 36 | 341 | 16.5 | 1.5 | 0.3 | 1.1 | 0.52 | 2 | 2×2×0.5 |
| 36 | 450 | 18.7 | 1.5 | 0.3 | 1.2 | 0.52 | 2 | 4×2×0.5 |
| 36 | 720 | 24.4 | 1.7 | 0.3 | 1.4 | 0.52 | 2 | 8×2×0.5 |
| 36 | 997 | 28.6 | 1.8 | 0.4 | 1.5 | 0.52 | 2 | 12×2×0.5 |
| 36 | 1705 | 38.8 | 2.1 | 0.4 | 1.9 | 0.52 | 2 | 24×2×0.5 |
It would be possible to produce all mentioned sizes in Triple & Quad form, with various types of Armour (SWA, SWB, DTA), Screen & Sheath materials (PVC, LSPVC, LSZH, PE, …)
